International Standards

EU/US/JP Standard Charging Stack

Fully compatible with mainstream protocols including EU CCS/Combo, US CCS1, and JP CHAdeMO — covering both AC and DC charging demands for overseas station construction and international project delivery.
Solution Overview

One Platform, Three Continents

Our EU/US/JP Standard Charging Stack Solution is engineered for global interoperability. Built on modular power units with protocol adapters, it seamlessly integrates with IEC, SAE, and CHAdeMO certified components to deliver multi-standard, multi-gun charging services at any scale.
Multi-Protocol Engine
  • EU CCS/Combo (Type 2)
  • US CCS1 (Type 1)
  • JP CHAdeMO
  • Real-time auto-detection & switching
International Certifications
  • IEC 61851 / IEC 62196
  • SAE J1772 / J2847
  • CHAdeMO 1.0 / 1.1 / 2.0
  • CE / FCC / PSE compliance
Multi-Gun Service
  • Simultaneous multi-standard output
  • Dynamic power allocation
  • Load balancing across guns
  • Independent gun control
OCPP Cloud Ready
  • OCPP 1.6 / 2.0 protocol support
  • Remote monitoring & diagnostics
  • OTA firmware updates
  • Central management platform integration
System Architecture

Solution Topology

Positioned at the core of the charging infrastructure, this is where hardware meets software. It coordinates power delivery, manages multi-protocol translation, and enables seamless cloud connectivity across the energy ecosystem.
AC Busbar Solution
DC Busbar Solution
AC/DC Power module
Operation and Maintenance Platform
Operational platform
Metering electricity meter
POS
SECC
HMI
Card reader
Vehicle end BMS
Inside the Pile

Charging Pile Internal Structure

A look inside the charging pile reveals a modular, serviceable architecture built around the SCMD-D5 control core — every component engineered for reliability and rapid field replacement.
Core Product

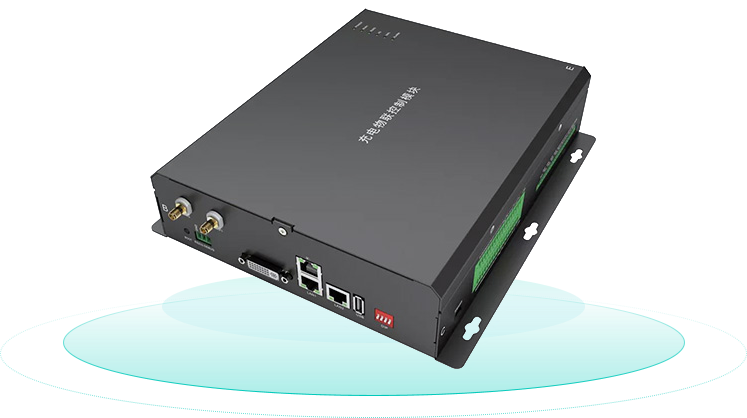

Charging IoT Control Module

The SCMD-D5 is a dual-gun charging control system built on STM32F413 + Linux + LVDS display architecture — integrating charging control, power allocation, information processing, insulation monitoring, electronic lock control, 4G/Ethernet/Wi-Fi/Bluetooth communication, voice function, and OCPP 1.6/2.0 into a single, highly integrated IoT control core.
Multi-Protocol Engine
Native support for EU CCS/Combo, US CCS1, and JP CHAdeMO with real-time auto-detection.
Full Intelligence
Active safety, black box, smart O&M, remote logs, edge computing
High Performance
CPU ≥ 800MHz, Memory ≥ 512MB, Storage ≥ 1GB
Protocols
GBT, CCS2, CCS1, CHAdeMO, OCPP 1.6/2.0

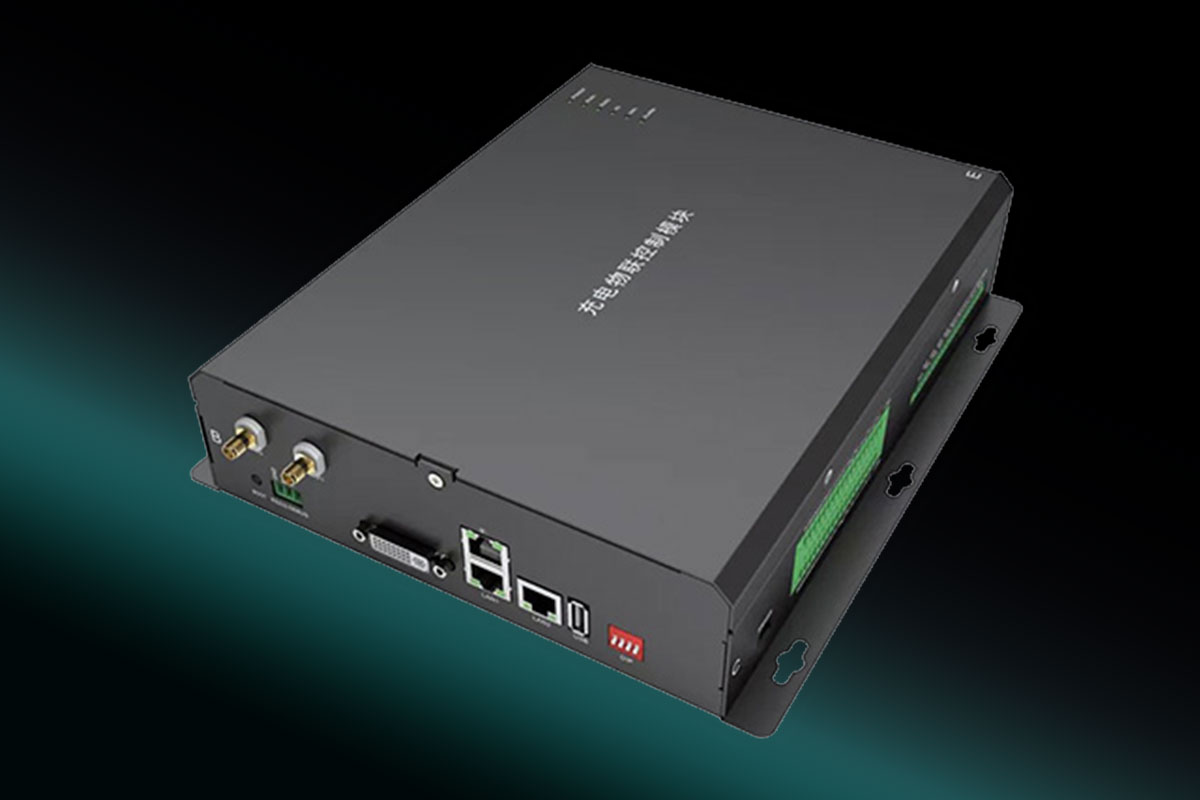

SCMD-D5 Controller

Dual-Gun IoT Control Core

With real-time operational log storage, remote diagnostics, and remote upgrade capabilities, the SCMD-D5 provides a technical foundation for stable station operation, low-cost maintenance, and rapid after-sales support.
01
Full Standard & Protocol Compatibility — GBT, CCS2, CCS1, CHAdeMO, covering all major global standards in one hardware platform.
02
Ultra-Fast Charging Ready — Supports high-power liquid-cooled ultra-fast charging at 400A / 600A / 800A, meeting megawatt-level fast charging demands.
03
Dual-Gun Independent Control — Each gun operates independently with dedicated insulation detection and full voltage/current/temperature sampling for a complete safety loop.
04
Industrial-Grade Protection — EMC Class A, lightning protection, ESD protection, conformal coating, wide-temperature stable operation.
05
Full-Function Networked O&M — 4G + Wi-Fi + Ethernet triple connectivity, supporting OTA, log tracing, USB upgrade, and cloud management.
06
Multi-Peripheral Integration — Unified control of touchscreen, voice, card reader, QR scanner, LED panel, fan, and contactor — all in one module.
07
One Hardware, Global Market — A single hardware design adapts to worldwide markets, significantly reducing R&D and inventory costs.
08
Black Box Safety Record — Large-capacity storage with real-time charging process logging. Every fault is traceable and auditable.
Core Product

EVSE Communication Controller

The SCMD-SECC2 is an ISO 15118 compliant EVSE (Electric Vehicle Supply Equipment) communication controller. It enables the charging controller to communicate with ISO 15118 / DIN 70121 / SAE J2847/2 compliant electric vehicles, supporting CP (Control Pilot), PP (Proximity Pilot), PWM signals, and Green PHY powerline communication.

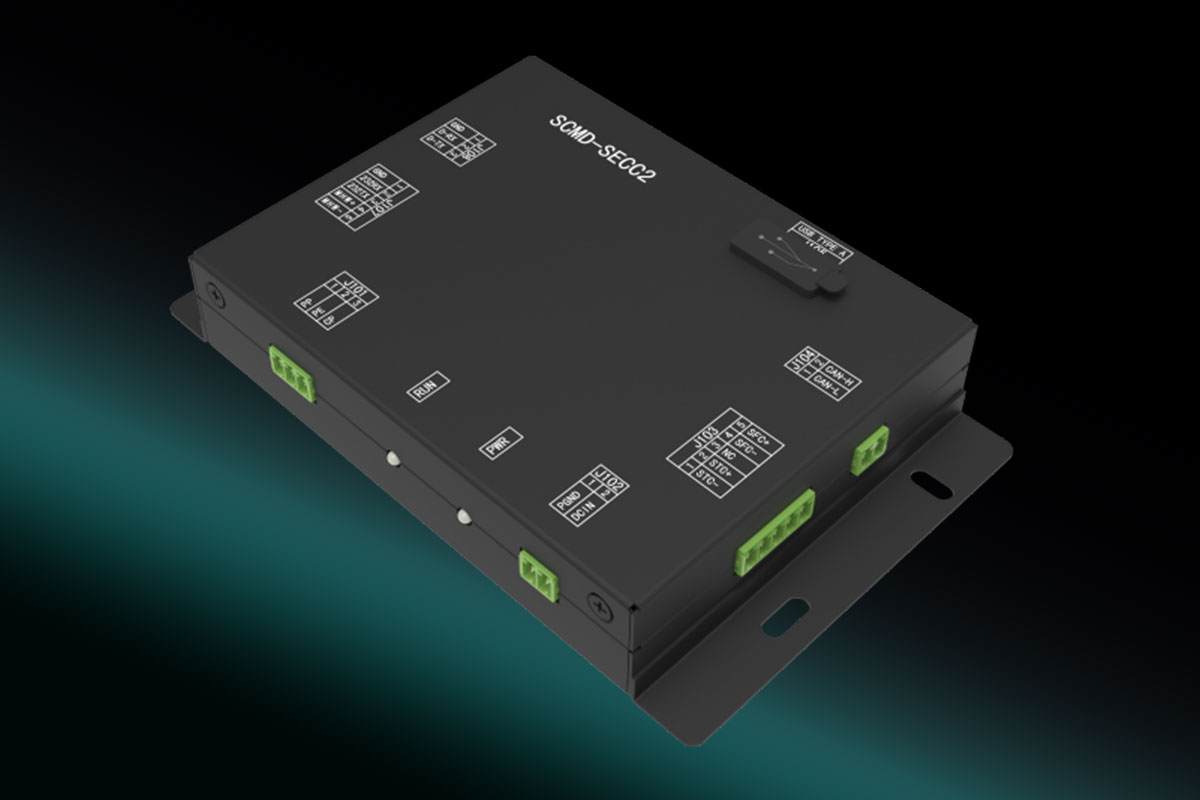

SCMD-SECC2

ISO 15118 Compliant SECC

Built around the Qualcomm HomePlug Green PHY QCA7005 PLC chip and a high-performance STM H7 microcontroller, the SECC2 delivers secure, reliable vehicle-to-grid communication with TLS protocol support.
Key Features
01
Qualcomm HomePlug Green PHY QCA7005 PLC chip for reliable powerline communication.
02
High-performance STM H7 chip with TLS security protocol support.
03
Full CCS compatibility: DIN70121, ISO15118-2/3.
04
Supports Plug & Charge (PnC) and External Identification Means (EIM) payment.
05
1kHz PWM communication with emergency stop input/output signals.
06
RS232 and CAN communication interfaces with OTA upgrade capability.
07
USB firmware upgrade and log download support.
Communication Standards
  • ISO 15118-1:2019
  • ISO 15118-2:2014
  • ISO 15118-3:2015
  • ISO 15118-4:2018
  • ISO 15118-5:2018
  • DIN 70121:2014
  • DIN 70122:2018
Electrical Certifications
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 62368-1
  • RoHS V2.0
PLC Chip
Qualcomm QCA7005 Green PHY
MCU
STM H7 series, TLS supported
Comm. Interfaces
RS232, CAN, CP/PP/PWM
Payment
PnC Plug & Charge + EIM

Application Scenarios

From Smart Highways to Automated Ports.

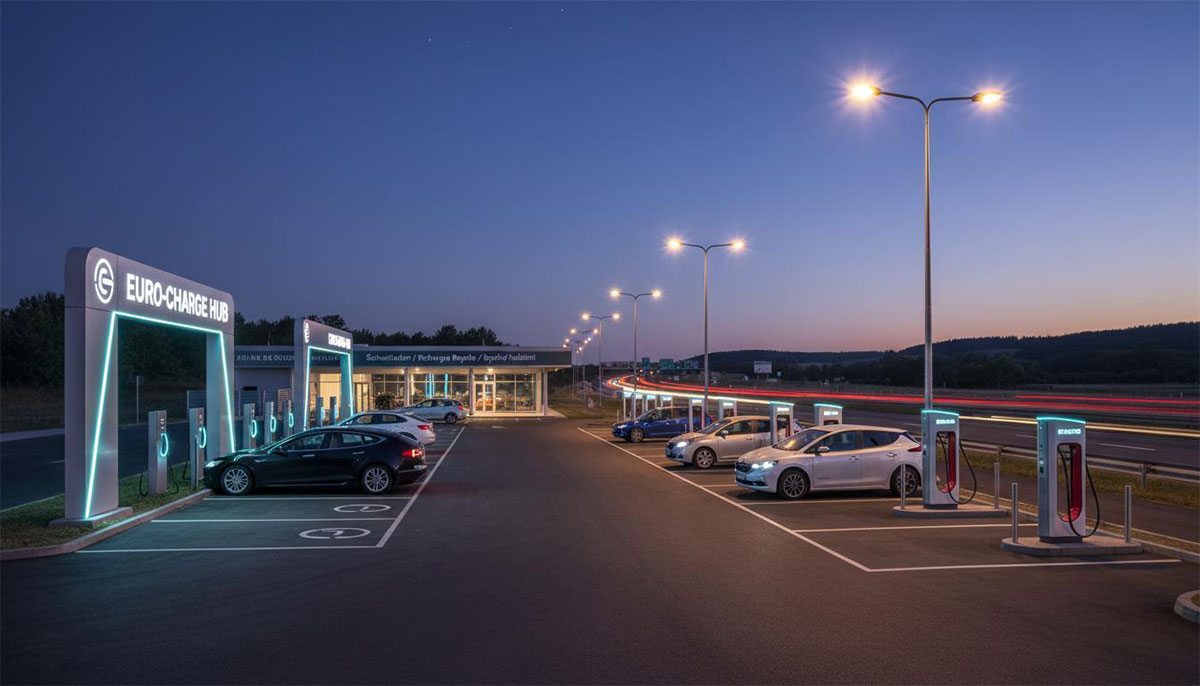

Cross-Border Highway
Multi-standard terminals on major EU routes. Auto-detects CCS/Combo or CHAdeMO vehicles.
CCS2
CHAdeMO

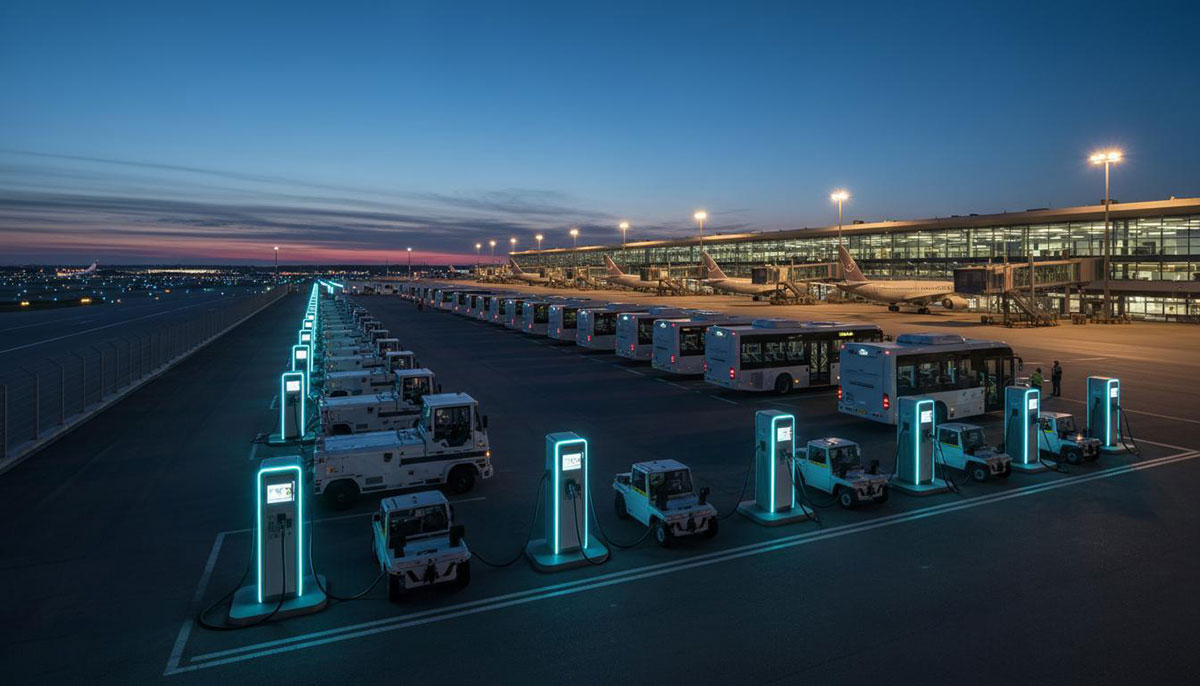

Airport Ground Fleet
Central charging hub for shuttles, baggage EVs, and service vehicles.
CCS1
CCS2

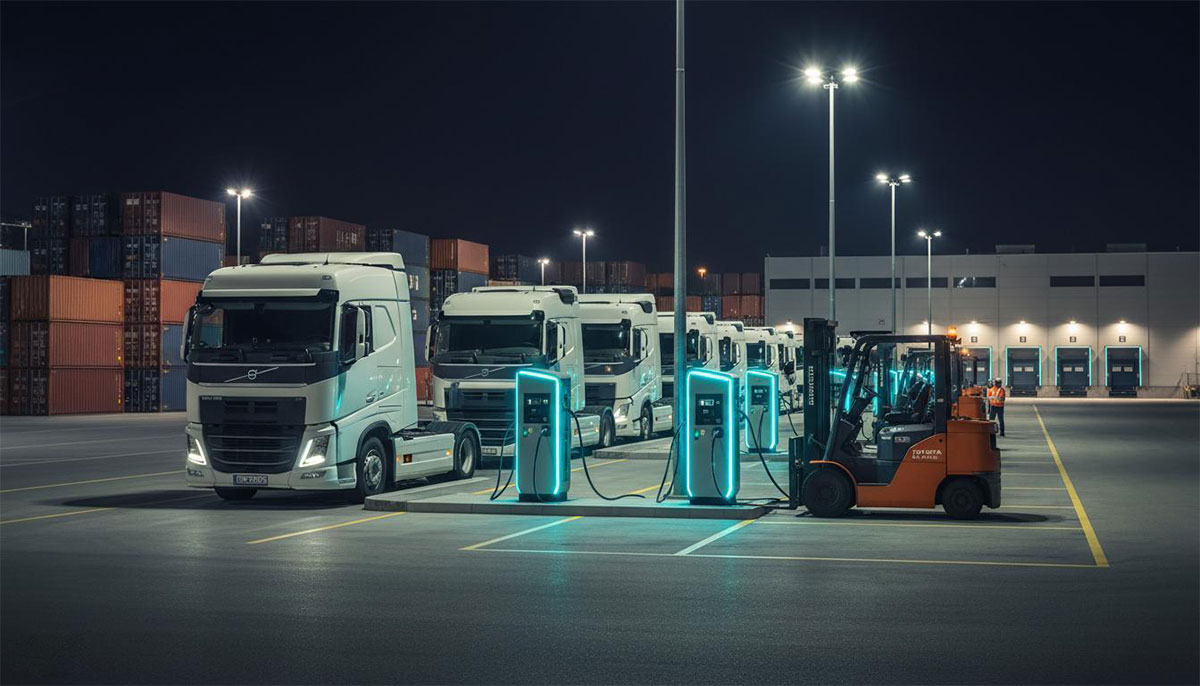

Intermodal Logistics
European trucks, Japanese forklifts, US delivery vans — all through a unified SCMD-D5 grid.
Multi-Gun
960kW

Case Studies

Driving EV infrastructure across three continents.
Netherlands
Fastned Urban Ring Network
Five stations with 960kW SCMD-D5 stacks. Remote diagnostics reduced O&M dispatches by 60%, smart power matrix boosted daily charging volume by 40%.
California, USA
GreenLot Logistics Hub
Dual-standard CCS1/JP charging for a mixed fleet. SCMD-D5's full-matrix allocation cut peak electricity loads by 25%.
Yokohama, Japan
Port Charging Station
Dual-gun CHAdeMO/CCS2 outputs serve Nissan Leaf fleets and EU-import EVs. OCPP 2.0 enables virtual power plant demand-response.

China Deployments

A showcase of our comprehensive EV charging solutions—from controllers to integrated systems—demonstrating exceptional adaptability and reliability in diverse Chinese market conditions.
Mobile Charging
Shanghai, China
Mobile Charging Fleet
120 mobile charging vehicles equipped with SCMD-D5 controllers, providing on-demand charging services across downtown Shanghai commercial districts.
